Chat System

This document outlines the design and implementation of a chat application with one-to-one and group messaging capabilities.

Requirements

Functional Requirements

Conversations:

Users can engage in direct (one-to-one) chats.
Users can participate in group conversations. Groups can have a maximum of 10,000 members.

Messaging:

All messages are text-based, with a limit of 4096 characters.
Messages must be sorted in chronological order.
Messages are immutable and cannot be changed after being sent.

Non-functional Requirements

Real-time Delivery: Messages must be delivered in real-time with low latency.
Reliability: Online users must not miss any messages from their conversations.
Availability: The application will primarily serve users in Southeast Asia and the United States.

System Design Overview

When a user logs into the application, the following interactions occur:

Conversation Service: The user’s device fetches historical conversations and messages.
Chat Service: The user establishes a persistent connection to a realtime server for sending and receiving new messages.

We will now examine each component in detail, starting with the data layer, which is the foundation of the system’s design.

Conversation Service

The Conversation Service is responsible for storing and retrieving all message history. This is particularly important for users who are coming online or switching devices and need to load a large volume of historical messages.

Message Store

Since messages must be rendered in chronological order, a database that natively supports sorted data is ideal, as it eliminates the need for secondary indexes.

Relational databases, such as MySQL, are effective as they can physically arrange data in sorted order.
NoSQL Column-family stores (e.g., Cassandra, Amazon DynamoDB) are also strong candidates. They are often implemented using a Log-structured Merge Tree (LSMT), a data structure that is highly efficient for handling sorted data.

Refer to this post to learn more about NoSQL Stores.

For this design, we will proceed with a NoSQL approach for several reasons:

The primary access pattern involves loading messages from a single conversation at a time. This simple query pattern is well-suited for a distributed NoSQL database.
The schema flexibility of NoSQL makes it easier to support new message formats (e.g., images, videos) in the future.

The basic schema for our messages will be:

A conversation_id uniquely identifies each one-to-one or group chat.
Messages within a conversation have incrementally increasing message_numbers.
A message is therefore uniquely identified by the composite key (conversation_id, message_number).

This schema allows us to distribute messages effectively:

The partition key is conversation_id, which co-locates all messages from the same conversation on a single partition.
The sort key is message_number, which ensures messages are natively sorted within the partition.

  erDiagram
    server_0 {
        conversation_0 message_0
        conversation_0 message_1
        conversation_2 message_0
    }
    server_1 {
        conversation_1 message_0
        conversation_3 message_0
    }

To further optimize performance, client devices should locally cache messages. This allows the client to fetch only the messages that are newer than what it already has stored.

FROM MESSAGE
WHERE conversation_id = @conversation_id AND message_number > @last_fetched_number

Conversation Store

A user can be a participant in many conversations. To manage this relationship, we can use a relational database with the following schema:

To avoid loading all of a user’s conversations at once, we will implement pagination. By updating the updated_at timestamp of a conversation whenever a new message is sent, we can paginate a user’s conversations based on this field. For users scrolling through their conversation list, Keyset Pagination is an effective strategy.

Combined with local caching, the client only needs to fetch conversations that have been updated since the last sync.

FROM CONVERSATION c
INNER JOIN PARTICIPATION p ON p.conversation_id = c.conversation_id
WHERE p.user_id = @user_id
    -- Keyed field for pagination
    AND c.updated_at > @last_fetched_time
ORDER BY c.updated_at DESC LIMIT @page_size

NoSQL Consideration

One might consider using a distributed NoSQL store for conversation metadata by partitioning the PARTICIPATION records by user_id. By denormalizing (replicating) the updated_at field from the CONVERSATION table into the PARTICIPATION table, fetching a user’s conversations would be a highly efficient single-node operation.

However, this design becomes problematic for group chats with many members. For example, in a group with 1,000 participants, every new message would trigger a write amplification of 1,000 updates to synchronize the updated_at timestamp across all participation records. The cost of this write-heavy operation outweighs the read benefits. Therefore, we will stick with a relational database for storing conversation metadata.

Self-contained Conversations

So far, our design uses two separate databases: a Column-family store for messages and a SQL database for conversation metadata. This leads to a common performance issue known as the N+1 query problem.

When a user fetches a page of their conversations, the following happens:

One query fetches a page of conversation_ids from the conversations store.
For each conversation_id returned, a separate query must be executed against the messages store to fetch the latest message details (e.g., sender info, content snippet) needed to render the conversation list item.

Source: pixsellz.io

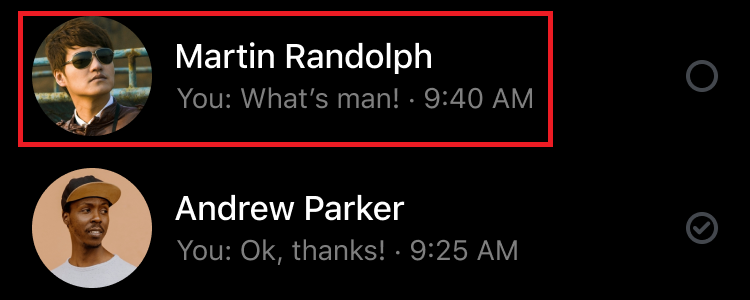

To solve this, we will denormalize the data by duplicating the latest message information into the CONVERSATION table. When a new message is sent, we will update both the message store and the corresponding CONVERSATION record.

Please note that this diagram is for demonstration; these datasets actually exist in different stores.

With this enhancement, conversation pages become self-contained, and all the necessary data can be fetched in a single, efficient request, eliminating the problem at the cost of increased complexity to maintain data synchronization.

Chat Service

This section focuses on the real-time delivery of messages to online users.

Real-time Cluster

The primary challenge is to transfer messages in real-time. Among various messaging protocols like Long Polling, Server-Sent Events (SSE), and WebSocket, we will use the WebSocket protocol. Its support for persistent, two-way communication makes it ideal for immediate message delivery.

For more information, refer to this article on communication protocols.

A single WebSocket server cannot handle all user connections. Instead, users will be distributed across a cluster of real-time servers.

Since users can connect to different servers, we need an effective mechanism to route messages between them. Two approaches can be considered:

Mapping Store: A centralized store (e.g., Redis) maps each connected user_id to their current server_id. When a server needs to send a message to a user, it looks up the target server in this store.
```
servers:
    user_0: server_0
    user_1: server_2
    user_2: server_0
```
Hashing Technique: An implicit routing rule assigns users to servers based on a consistent hash of their user_id, such as target_server = hash(user_id) % number_of_servers.

The first approach (mapping store) is more suitable for this use case. WebSocket connections are long-lived and sticky, meaning a user remains connected to a specific server for their entire session.

The online status of users is unpredictable. The hashing technique could lead to poor load distribution; for example, if many online users happen to have odd-numbered IDs, server_1 could become overloaded while server_0 remains idle. The mapping store approach adapts dynamically to the actual distribution of online users.

Fan-out Pattern

The direct server-to-server routing model becomes problematic for group chats. When a message is sent to a group, the sending server would need to identify and contact every server that has a participant of that group. This creates a complex and resource-intensive web of communication.

A more scalable and manageable solution is to introduce an intermediate fan-out channel (e.g., a message broker like RabbitMQ or a pub/sub service like Amazon SNS). When a server sends a message, it publishes it to this central channel. The channel is then responsible for fanning out the message to all the relevant destination servers. We can use the destination server_ids as routing keys to ensure the message is delivered only to the necessary servers.

Identifying Target Servers

The next question is: how does the sending server determine which server_ids to use as routing keys? In other words, how do we find all the servers that have active connections for a given conversation?

A simple way is to maintain a connection table that tracks the server for each active user device.

To find the target servers for a conversation, we can perform a JOIN between the PARTICIPATION and USER_CONNECTION tables on user_id. Because user connection status is highly volatile (users connect and disconnect frequently), the results of this query should not be cached, as the cache would become stale very quickly.

Alternative: Actively Tracking Connections

For systems with very large groups and high message frequency, re-querying the database for every message could become a bottleneck. An alternative approach is to actively track the set of target servers for each conversation in a fast in-memory store like Redis.

When a user connects to the Chat Service, the system would:

Query all conversation_ids for that user from the PARTICIPATION table.
For each conversation_id, add the user’s server_id to a shared set (e.g., Redis) that tracks the active servers for that conversation. When the user disconnects, the server_id would be removed from these sets.
```
# Redis syntax for each of the user's conversations
SADD conversations:{conversation_id}:servers {server_id}
```

The major drawback of this approach is the high number of updates required for users who are part of many conversations. If a user is in hundreds of groups, their connection or disconnection would trigger hundreds of Redis updates. This can lead to a thundering herd problem of updates and creates significant complexity in keeping the cache perfectly synchronized with the actual connection state.

Given the requirement of up to 10,000 members per group, the on-demand querying approach is deemed sufficient and less complex. Therefore, we will skip the active tracking solution in this project to avoid its complexity and potential for error.

Implementation

This section details the implementation and infrastructure of the chat system within the AWS cloud. A key requirement is to serve users in both Southeast Asia (ap-southeast-1) and the United States (us-east-1). To reduce latency and avoid high cross-region data transfer costs, we will deploy the system in a multi-region setup, allowing users to connect to the geographically closest infrastructure.

Database Layer

The database architecture consists of two distinct stores, as previously discussed.

Conversation Store

The core relational database, which stores conversation metadata and user connection status, has the following schema:

Both Amazon RDS and Amazon Aurora are suitable for this purpose. While Aurora is more expensive, it offers higher performance, reduced management overhead, and a straightforward solution for multi-region replication via its Aurora Global Database feature. This feature designates a primary region and automatically forwards all write operations from secondary regions to the primary.

Regional Connections Consideration

A user connecting or disconnecting triggers a write to the USER_CONNECTION table. Since users connect and disconnect frequently, this would result in a high volume of cross-region write forwards, incurring significant costs.

An alternative would be to manage the USER_CONNECTION table locally within each region. However, this creates a new problem: how does a server in one region route a message to a server in another region if connection data is not globally available? The only solution would be to broadcast messages to the other region, hoping a recipient is there. This is inefficient, wastes bandwidth, and we need to run another database as Aurora Global Database does not support excluding specific tables from replication. Therefore, we will not adopt this regional approach and will accept the cost of replicating connection status globally.

Message Store

The message data itself is stored in a column-family table.

We will use Amazon DynamoDB, which natively supports multi-region deployments with its Global Tables feature. Unlike Aurora, DynamoDB Global Tables use an active-active replication strategy, where writes can occur in any region. Conflicts are resolved using a last writer wins mechanism.

Web Service Layer

Fan-out Pattern Implementation

The fan-out pattern for real-time message delivery will be implemented using Amazon SNS (Simple Notification Service) and SQS (Simple Queue Service). These serverless services reduce management overhead and handle AWS-native workloads like cross-region data transfer efficiently.

For each chat server instance, we will create a dedicated SQS queue. The server will publish messages to a regional SNS topic. SNS will then use message attributes (e.g., target_server_id) to route the message to the correct SQS queues.

Using SQS queues as a buffer between SNS and the consumer servers is crucial for two reasons:

Scalability: SQS provides a backpressure buffer, preventing consumer servers from being overwhelmed by sudden spikes in traffic.
Resilience: If a server becomes temporarily unavailable, messages are held reliably in its queue until the server can process them.

To optimize for multi-region cost, when a server determines that a message has recipients in another region, it will publish that message directly to the SNS topic in the target region. This avoids having one message cross the regional boundary multiple times (once for each recipient queue).

We do not need to enable SNS/SQS FIFO options. Each chat server can track the message_number of the last message it delivered for a conversation. If an out-of-order message arrives, the server can either fetch the missing messages from the messages store (if there’s a gap) or simply discard the message (if it’s older than the last one sent).

Multi-region Deployment

We will build two distinct services:

Conversation Service: A stateless HTTP API that serves data from the relational store. We will use a Round-robin load balancing strategy, as requests are short-lived.
Chat Service: A stateful service managing long-lived WebSocket connections. We will use a Least Connections load balancing strategy to distribute users evenly across available servers.

Refer to this article for more information about Load Balancing algorithms.

The infrastructure will be built using the following AWS services:

Amazon ECS (Elastic Container Service) for running our containerized services.
Application Load Balancer (ALB) configured with listener rules for both Round-robin (HTTP) and Least Connections (WebSocket) traffic.
Amazon Route 53 with Latency-based routing to direct users to the nearest regional deployment.
VPC Endpoints (Gateway for DynamoDB; Interface for SQS/SNS) to ensure secure, private communication between our services and other AWS services.

The final architecture for a single region is as follows:

While this architecture may seem complex, it is a realistic representation of what is required to build a scalable, available, and performant chat application in a multi-region environment. The trade-off for this complexity is a robust system that avoids the bottlenecks and single points of failure inherent in simpler, direct communication models.

Last updated on November 6, 2025
